Clarify & Mosaic Edge Demo - Simulated Data

Mosaic Edge is a Windows application that reads data from a PLC, and writes the data to Clarify.

This demo uses smartphone and web applications from Clarify, and MQTT edge software from Mosaic Automation.

The Clarify app can be found in the Apple and Android app stores by searching for "Clarify: Data Collaboration".

Log on to the web application demo at ClarifyApp.

Email Jerry at This email address is being protected from spambots. You need JavaScript enabled to view it. to request credentials to access the demo.

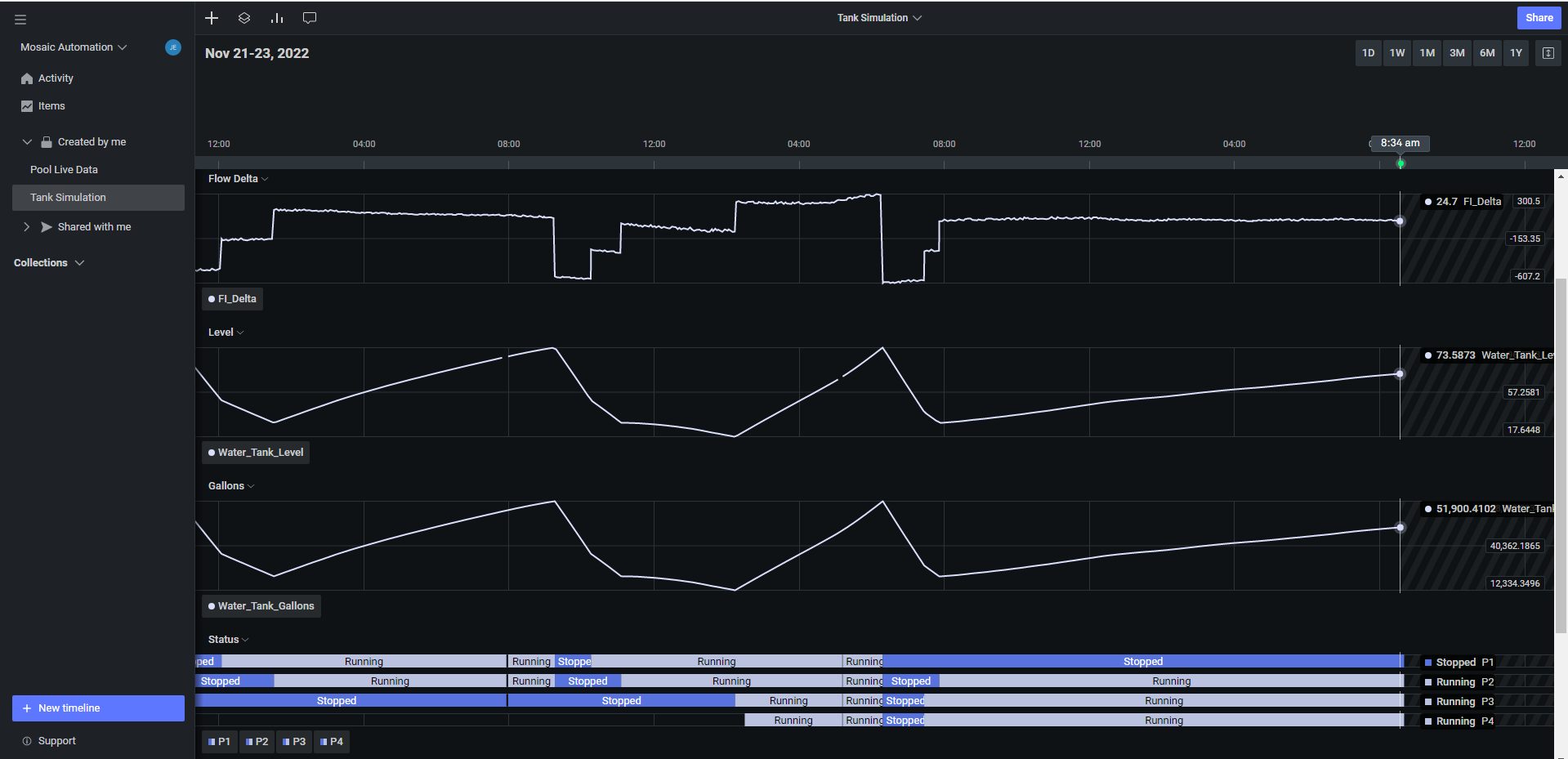

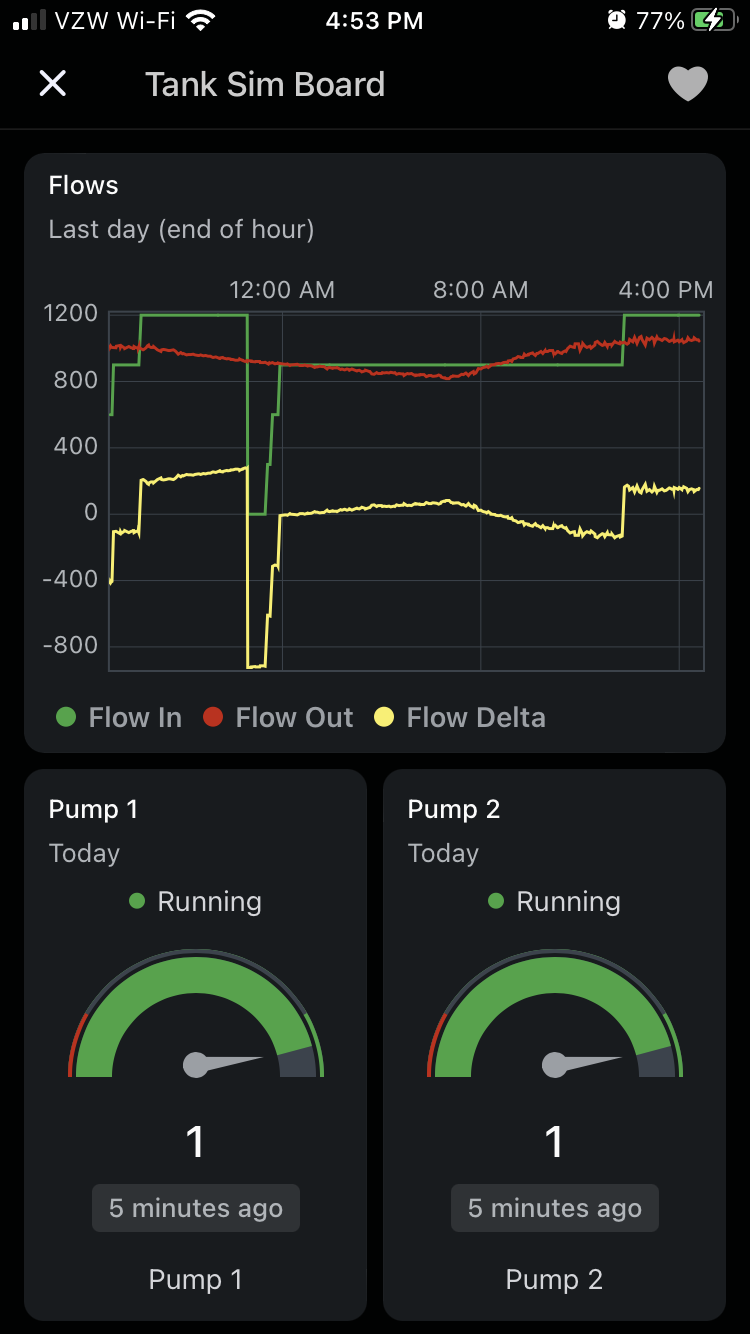

Simulated Data - Water Tank Fill

This portion of the demo simulates a water tank fill application.

The demo is running in an Allen-Bradley CompactLogix PLC, but the values are calculated.

Tank water out flow is calculated using live outside temperature(F) X 11 = flow (gpm).

This is done to intoduce a real world variable.
